QUAD-ARM BRACKET FOR FOUR CANTILEVER LUMINAIRES

QUAD-ARM BRACKET FOR FOUR CANTILEVER LUMINAIRES “SHARP ANGLE”

Height: 0.5 m
Projection (Reach): 0.5 m
Fixture mounting diameter: 46–48 mm (outer diameter)

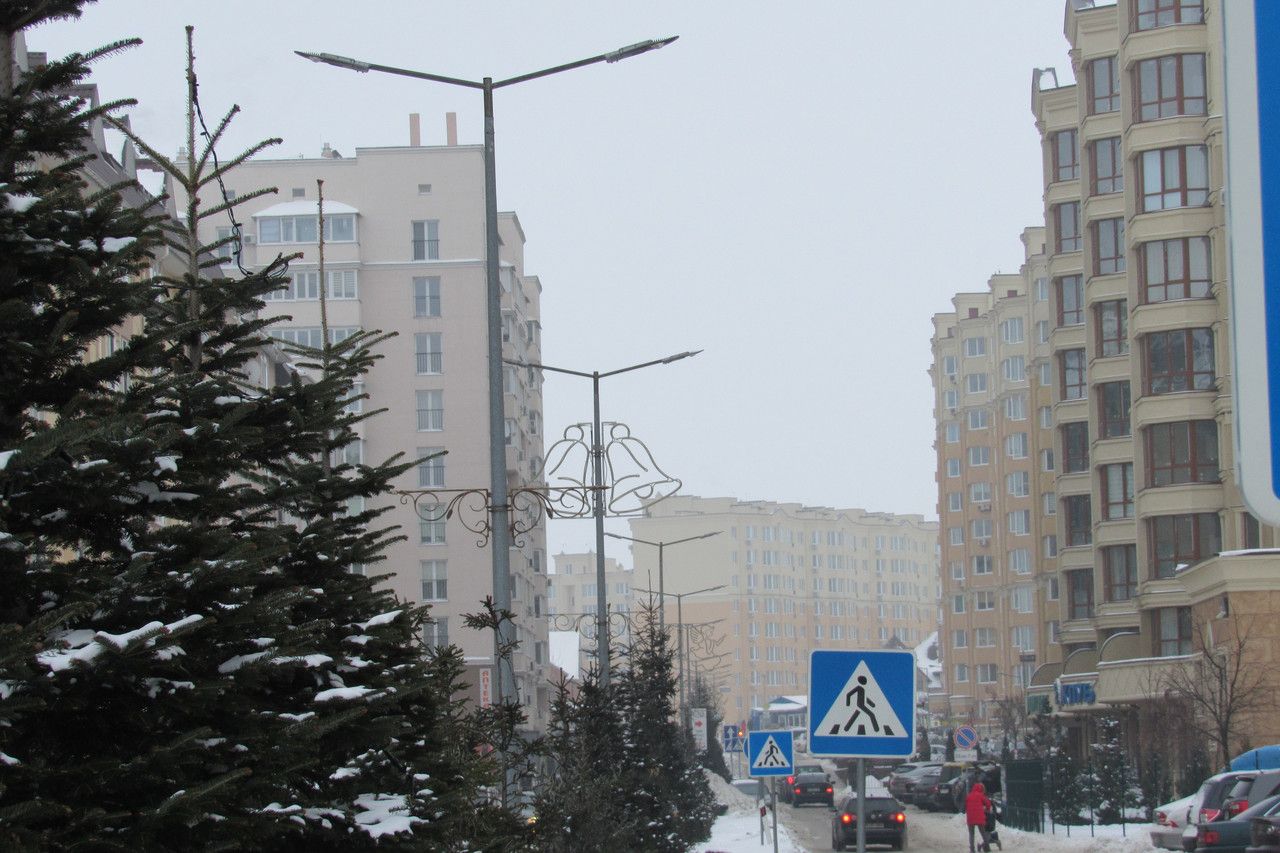

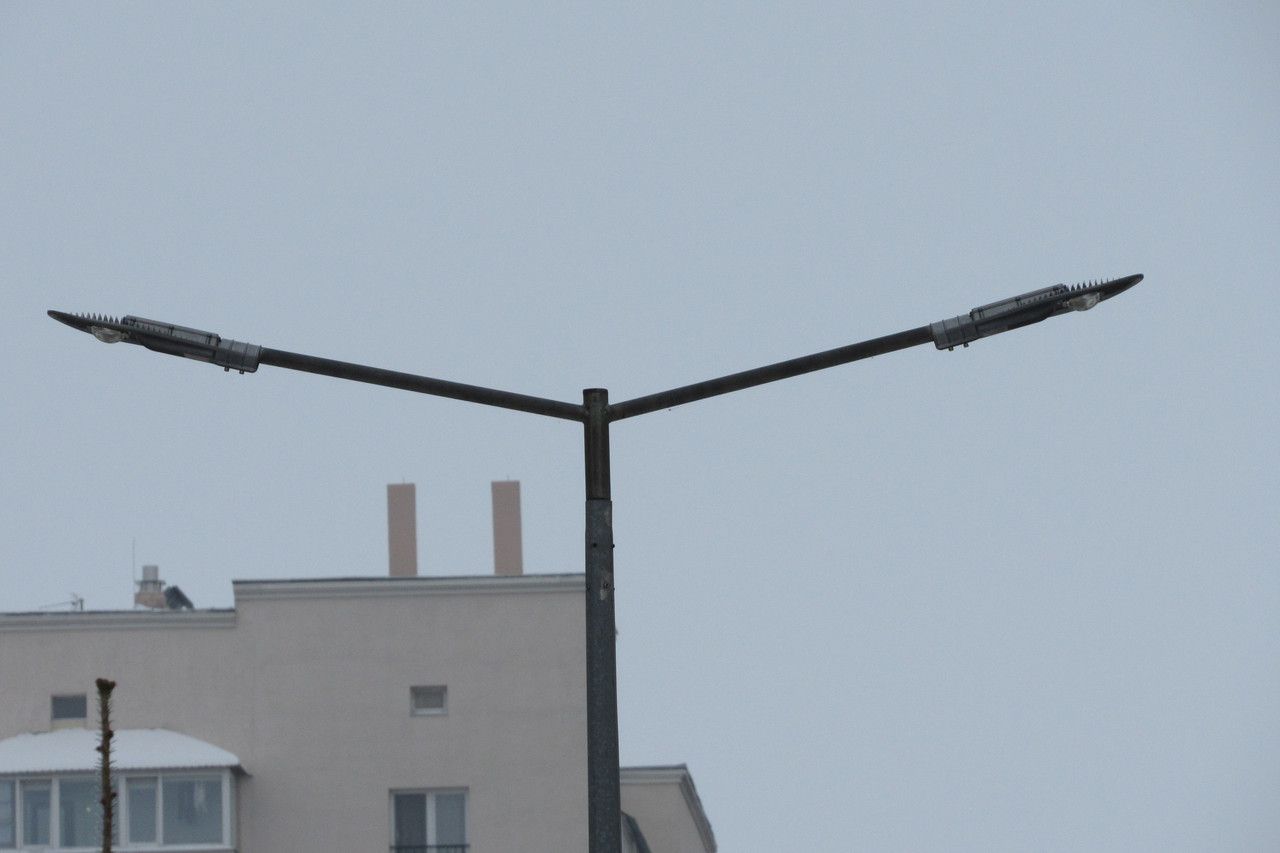

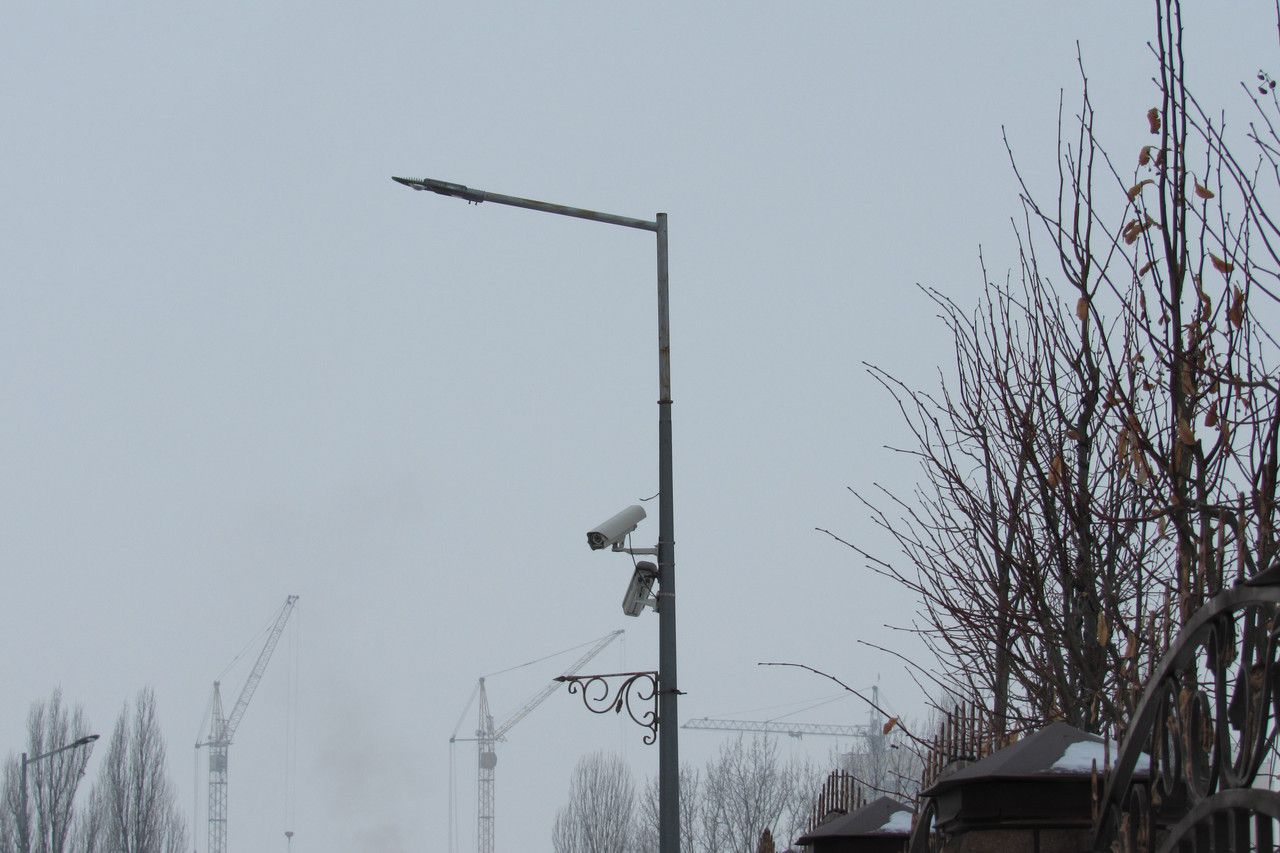

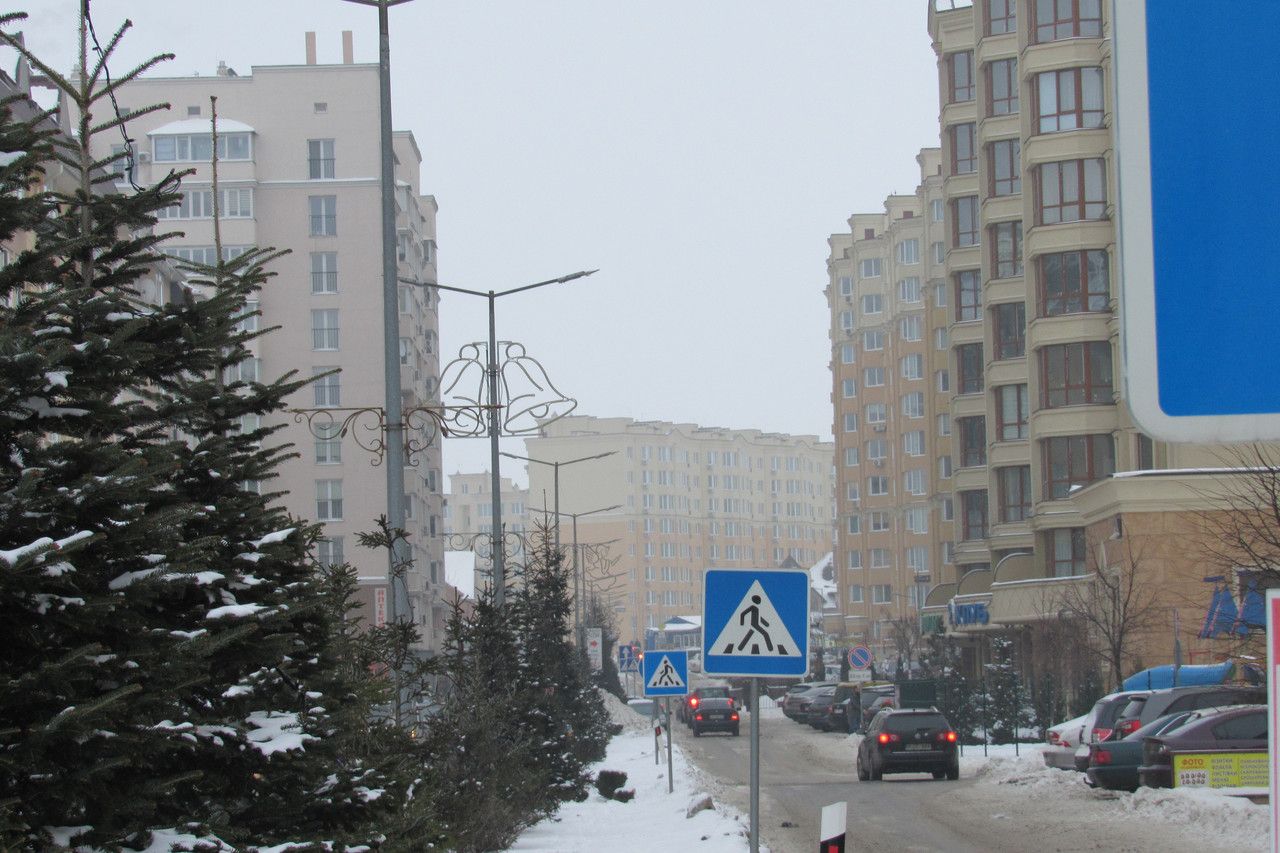

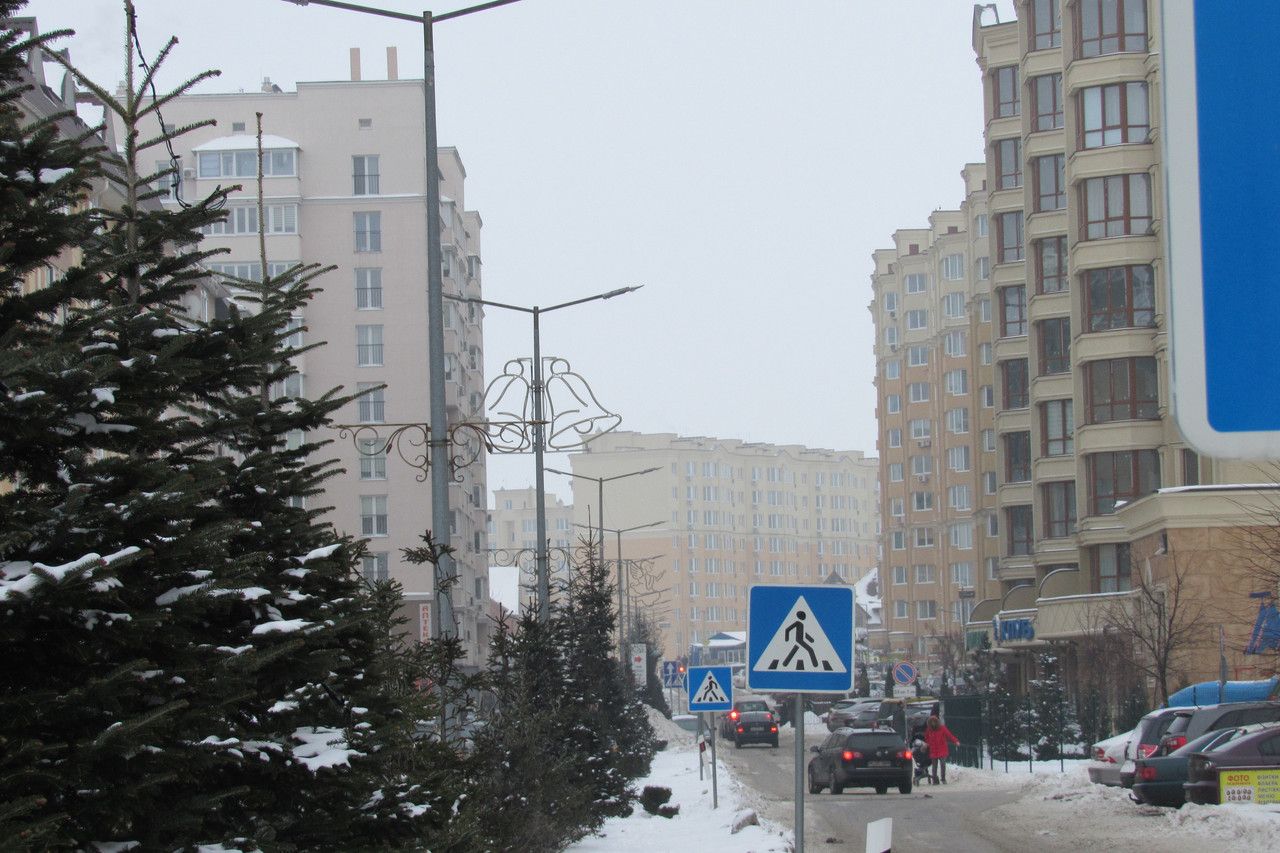

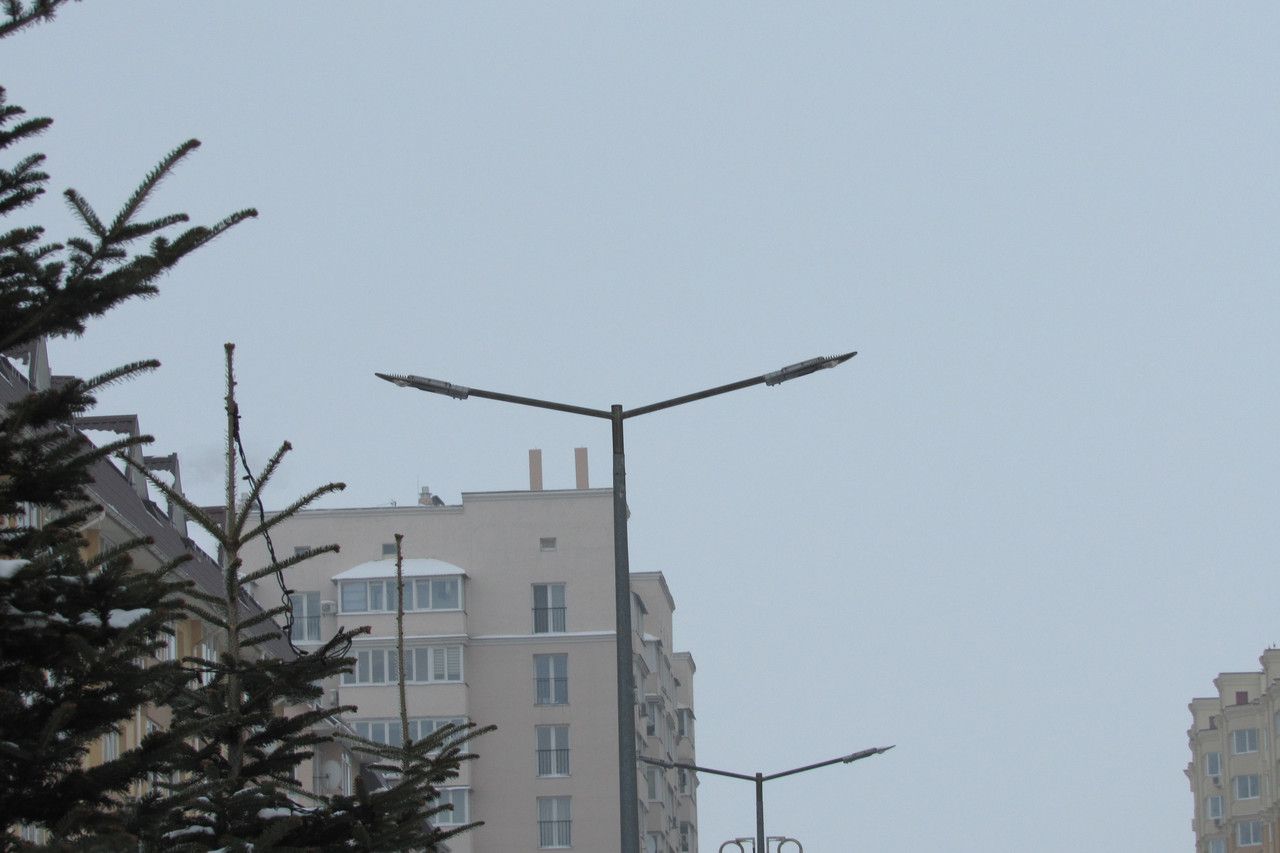

This bracket is designed for lighting poles and is primarily used for mounting cantilever-style luminaires.

Brackets can be manufactured for one, two, three, or four luminaires.

We also offer a “tilt-adjustable bracket”, allowing precise adjustment of the luminaire angle.

Brackets designed for more than four luminaires are known as “crowns”, which we can produce according to your technical specifications.

For smaller sports facilities — where pole heights rarely exceed 12 meters — a T-shaped bracket is often the most practical solution, commonly used for floodlights mounted on a yoke.

For taller poles — 14, 16, 18, 20… up to 40 meters — the design is fully customized, including:

• individual material thicknesses based on pole load

• optional service ladders and platforms

• custom bracket configurations

We are happy to select and supply professional lighting equipment tailored to your project.

Contact us today.
